Data Inspector

A Vue query workbench for live server-side objects: register data sources, then compose jora queries in the owning process.

Package: @devframes/plugin-data-inspector · Vue + Vite

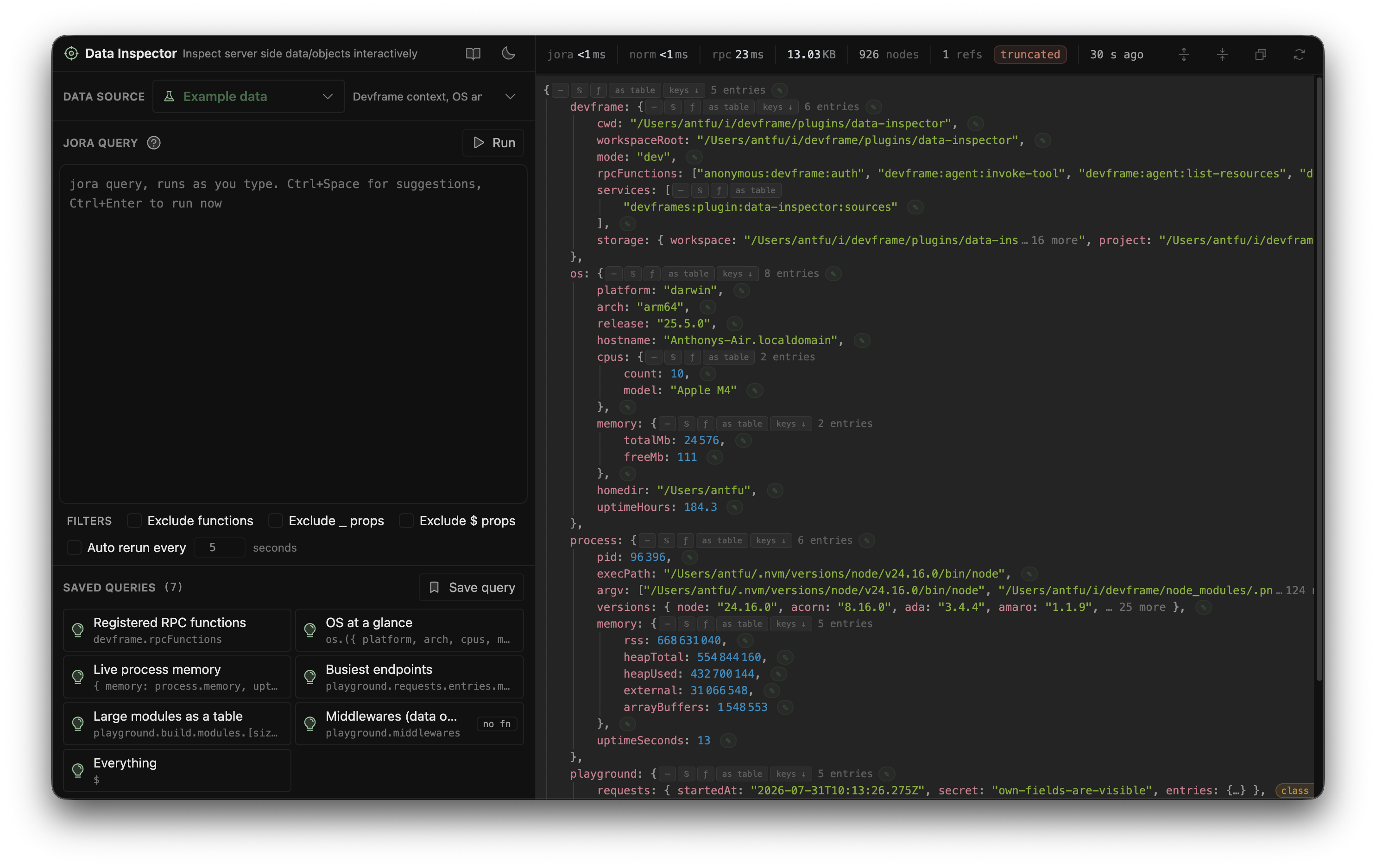

Query workbench with results and data shape panel

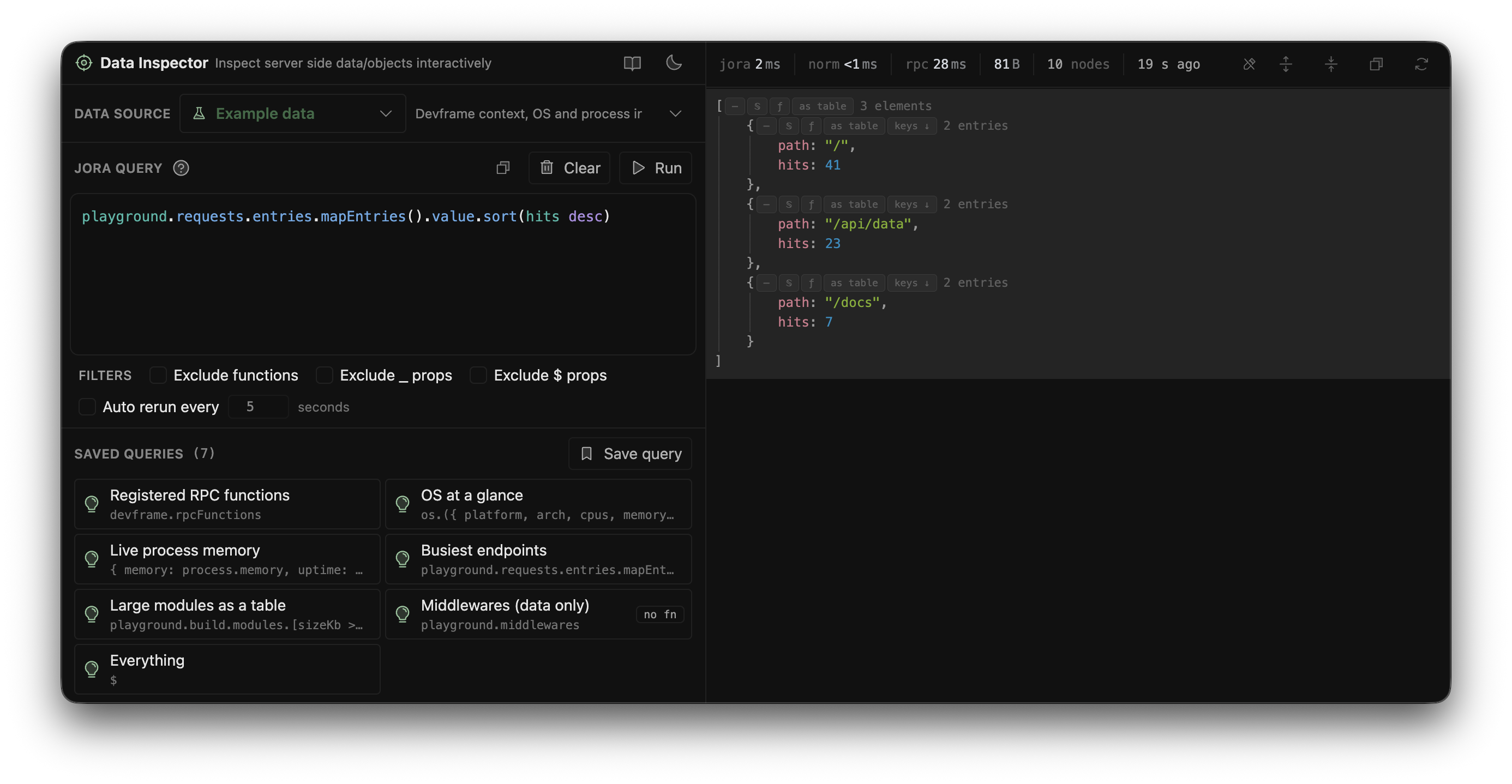

Query data with advanced Jora syntax

What it does

• Query workbench — a CodeMirror jora editor with server-computed autocomplete; queries auto-run as you type, state in the URL hash.
• Auto rerun — optional poller (auto rerun every N seconds).
• Result viewer — normalizes to strict JSON (circulars → $ref; Maps, Sets, class instances, functions, Dates get type badges) plus per-query stats.
• Expansion, shape & filters — deep nodes fetch lazily via load deeper; a shape panel shows a one-level skeleton; filters drop functions and _/$ properties.
• Saved queries — recipes (query + title/description + filters) in the workspace scope (committable) and the project scope (per-checkout).

A built-in example source registers by default; opt out with exampleSource: false (--no-example; DEVFRAME_DATA_INSPECTOR_EXAMPLE=0 when injected).

Providing data sources

The registry is process-global — register anywhere, before or after mount.

import { registerDataSource } from '@devframes/plugin-data-inspector/registry'

registerDataSource({
  id: 'my-plugin:store', // namespace with your devframe id
  title: 'My plugin store',
  description: 'The live state store',
  icon: 'i-ph:database-duotone',
  data: () => store,
  queries: [
    { title: 'Active sessions', query: 'sessions.mapEntries().value.[active]' },
    { title: 'Config (data only)', query: 'config', excludeFunctions: true },
  ],
})

data is a plain value or sync/async factory; static: true resolves it once; queries show read-only beside saved ones; registerDataSource returns an unregister callback. Zero-dependency devframes register through the typed context service ctx.services.whenAvailable('devframes:plugin:data-inspector:sources', …).

Deep linking

Workbench state lives in the URL hash (#source=<id>&query=<jora>, filters); the handshake token rides the query string (?devframe_auth_token=), scrubbed on read.

In a hub, another dock jumps to a source via dock activation — rpc.call('hub:docks:activate', { dockId: 'devframes:plugin:data-inspector', params: { sourceId } }) (waits for registration).

Standalone

pnpx @devframes/plugin-data-inspector                      # the example source
pnpx @devframes/plugin-data-inspector stats.json log.jsonl # one static source per data file
pnpx @devframes/plugin-data-inspector build stats.json     # self-contained static export
pnpx @devframes/plugin-data-inspector attach               # attach to a process running the inject endpoint

.json parses whole; .jsonl / .ndjson as a record array. build embeds the dataset in a static site.

Mount into a Vite host

For Vite DevTools:

// vite.config.ts
import createDataInspectorDevframe from '@devframes/plugin-data-inspector'
import { createPluginFromDevframe } from '@vitejs/devtools-kit/node'
import { defineConfig } from 'vite'

export default defineConfig({
  plugins: [
    createPluginFromDevframe(createDataInspectorDevframe()),
  ],
})

Register sources with registerDataSource, or mount via devframeVite(createDataInspectorDevframe()) from @devframes/vite/single.

Programmatic

import { createDataInspectorDevframe } from '@devframes/plugin-data-inspector'

export default createDataInspectorDevframe({
  exampleSource: false,
})

Attach to another Node process

The target starts the inject endpoint:

import { exposeDataInspector } from '@devframes/plugin-data-inspector/inject'

await exposeDataInspector({
  sources: [{ id: 'app:store', title: 'App store', data: () => store }],
})

sources pre-registers entries; call it empty to expose whatever's registered. Or code-free:

DEVFRAME_DATA_INSPECTOR=1 node --import @devframes/plugin-data-inspector/inject server.js

This auto-registers a globalThis source:

// somewhere in the running process
globalThis.store = store
globalThis.cache = cache

It reads globalThis at query time, so later assignments appear next run (opt out: DEVFRAME_DATA_INSPECTOR_GLOBAL=0).

The inject endpoint binds 127.0.0.1, requires the trust handshake with a per-run token, and advertises itself in node_modules/.data-inspector/discovery.json, which attach reads (or pass ws://… + --token).

RPC

All devframes:plugin:data-inspector:*:

Source

plugins/data-inspector
